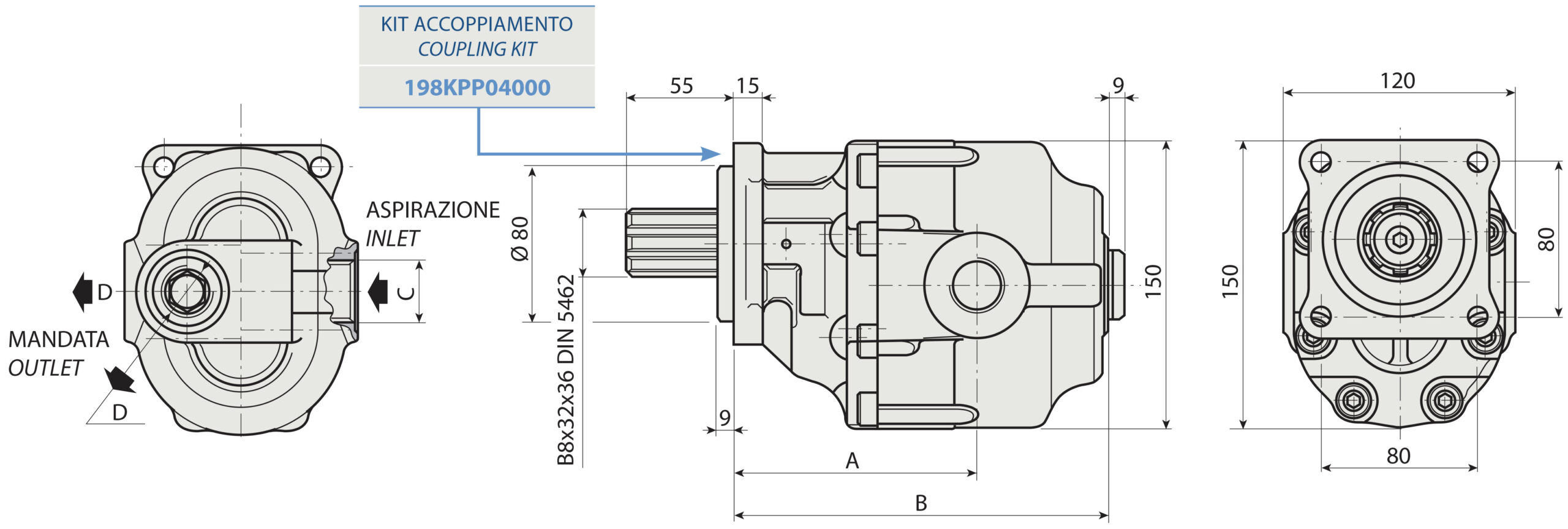

| TYPE | CODE | DISPLACEMENT cm3 |
A mm |
B mm |
C INLET | D OUTLET | WEIGHT kg |
| FZL 15 | 200FZL015DS | 15 | 96,5 | 142,5 | 3/4 | 1/2 | 8,6 |
| FZL 22 | 200FZL022DS | 22 | 101,5 | 147,5 | 3/4 | 1/2 | 9,1 |
| FZL 36 | 200FZL036DS | 36 | 99,5 | 157,5 | 3/4 | 1/2 | 9,8 |
| FZL 43 | 200FZL043DS | 43 | 104,5 | 162,5 | 1 | 3/4 | 10,2 |
| FZL 57 | 200FZL057DS | 57 | 111,5 | 172,5 | 1 | 3/4 | 11 |
| FZL 65 | 200FZL065DS | 65 | 116,5 | 177,5 | 1 | 3/4 | 11,5 |
| FZL 90 | 200FZL090DS | 84 | 126 | 192,5 | 1 | 1 | 12,5 |
| FZL 110 | 200FZL110DS | 105 | 138 | 204,5 | 1 | 1 | 14,3 |
| FZL 27 | 200FZL027DS | 27 | 105 | 152,5 | 3/4 | 1/2 | 9,3 |
| TYPE | CODE | DISPLACEMENT cm3 |
MAX CONTINUOUS OPERATING PRESSURE bar |
MAX INTERMITT. OPERATING PRESSURE (MAX 30S) bar |
MAX PEAK PRESSURE (P<= 0.1S) bar |
MAX INTERMITTENT SPEED (P<=20 BAR) n/min r.p.m. |
MAX CONTINUOUS SPEED (<=P1) n/min r.p.m. |
MIN INTERMITTENT SPEED (<=P2X0.5) (MAX 30S) n/min r.p.m. |
| FZL 15 | 200FZL015DS | 15 | 315 | 340 | 360 | 4000 | 2500 | 450 |
| FZL 22 | 200FZL022DS | 22 | 305 | 330 | 350 | 4000 | 2500 | 450 |
| FZL 36 | 200FZL036DS | 36 | 300 | 325 | 345 | 3500 | 2200 | 350 |
| FZL 43 | 200FZL043DS | 43 | 280 | 305 | 325 | 3500 | 2200 | 350 |
| FZL 57 | 200FZL057DS | 57 | 240 | 265 | 285 | 3500 | 2000 | 300 |
| FZL 65 | 200FZL065DS | 65 | 220 | 240 | 265 | 3500 | 1800 | 300 |
| FZL 90 | 200FZL090DS | 84 | 210 | 230 | 250 | 3500 | 1500 | 300 |
| FZL 110 | 200FZL110DS | 105 | 180 | 200 | 220 | 3000 | 1500 | 300 |
| FZL 27 | 200FZL027DS | 27 | 300 | 325 | 450 | 3500 | 2200 | 350 |
